DAD Analog detector

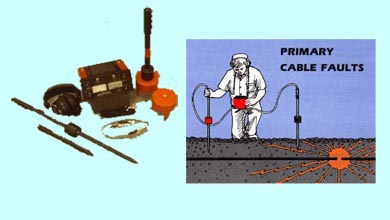

The model DAD Directional Acoustic Detector features a new concept in fault locating that utilizes the speed of sound to show direction to the fault (thump) from where the operator is standing. This dual channel system is designed to work with any brand thumper. The sound of the thump is detected at different times by two microphones placed over the cable route. The DAD uses an ultra-high speed clock to determine which microphone is closer to the fault and indicate the direction the operator must go. When the operator passes the fault, the meter will indicate a reversal in direction. The DAD includes soft soil microphones (earth probes) as well as tri-pod bases for hard surface location. The earth probe allows the thump to be heard in soft dirt, sand, barkdust, or under water. It even works well in high background noise areas. Since the earth probe penetrates the soil, background noise is left above ground and all that remains below ground is the "thump". The tri-pod bases are used over asphalt and concrete and can even be pushed into some types of soft soil. The DAD also includes a ballistic impulse detector to visually confirm the presence of the "thump". This detector receives the large magnetic wave that travels the cable with the thumper pulse. This magnetic is so effective, the operator can pre-locate most faults using only the magnetic portion of the DAD, even from inside a moving vehicle.

Features

DAD Features:
l A-T Ballistic Impulse Meter Detection System
l Logic Trip Meter for direction to fault indication
l Audio output limitation: Automatic ear protection for the operator, even if a microphone is dropped.
l A-T Ballistic Impulse Meter Detection System
l Logic Trip Meter for direction to fault indication

DAD Package contents:
2 Earth Probe Microphones
2 3 Legged tri-pods (for use on hard surfaces)
2 Microphone Cables
1 Stereo Headphones - High quality and comfortable
1 Audio output limitation: Automatic ear protection for the operator, even if a microphone is dropped.
1 Foam lined carrying case
1 Instruction Manual

DAD Accessories:

l

 SP100 Stirrup Probes
l Backlit display (DADbl)
l Microphone cable, for ground-contact microphone
l Microphone: earth-probe type.
l Earth probe-rod, for earth-probe microphone.
l Stereo headphone set.
l 3 legged tri-pods (2 each)
l Extension pipes (2 each)
l Neck strap.
