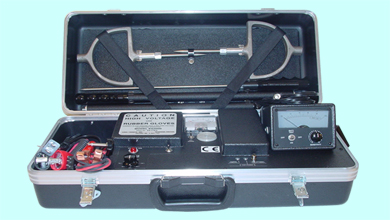

The EG3000 is the
culmination of 20 years of fault locator development based upon
field experience. It is a complete system, employing the most
effective fault location electronics, plus many features for
safety and operational convenience. Most outstanding of these is
the system's Automatic Cable-Saving Voltage Control. When
pulsing a line to establish a fault, the EG3000 applies only
the breakdown voltage needed. Just as important, once the
breakdown or flash to ground is achieved, the voltage is
automatically reduced to the minimum amount needed to keep the
fault alive and the fault current is increased. Up to 2.2 amps
is available to locate through asphalt and concrete or dry sand
and soil. Try that with an AC type fault locator.
Features
The Transmitter:
l
Faults up to 20 MegOhm
l
Over 2 amps of current available
l
Automatic voltage control
l
Up to 3 kV output
l
Connection leads
for the transmitter are protected against short circuit.
l
Operates from 230V AC 50 Hz. source, 12V
external source, or 12V 7Ah rechargeable internal
battery.
