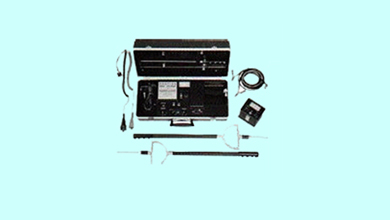

Manual     Picture EG3000T Cable fault locator & tone trace transmitter     The EG3000T is the culmination of 20 years of fault locator development based upon field experience. It is a complete system, employing the most effective fault location electronics, plus many features for safety and operational convenience. Most outstanding of these is the system's Automatic Cable-Saving Voltage Control. When pulsing a line to establish a fault, the EG3000T T applies only the breakdown voltage needed. Just as important, once the breakdown or flash to ground is achieved, the voltage is automatically reduced to the minimum amount needed to keep the fault alive and the fault current is increased. Up to 2.2 amps is available to locate through asphalt and concrete or dry sand and soil. Try that with an AC type fault locator.   Features   The Transmitter: l Faults up to 20 MegOhm l Over 2 amps of current available l Automatic voltage control l Up to 3 kV output l Connection leads for the transmitter are protected against short circuit. l Operates from 230V AC 50 Hz. source, 12V external source, or 12V 7Ah rechargeable internal battery. l Prevents cable and insulation damage l Proof tests cables before returned to service. l 120Volts Protection for hookups to live cables.   EG3000T Package contents: l with tone trace in transmitter but no receiver   Accessories: l AF3000 A Frame l IC49 Inductive Coupler l IC56 Inductive Coupler l IC56WT Wireless Inductive Coupler Manual     Picture
