 A700 Analog ground cable locator

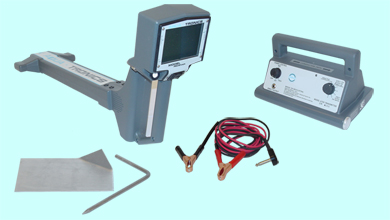

Light weight, integrated one-hand controls, speed and simplicity sum up the new A700 analogue pipe and cable locator. A700 is an affordable analogue alternative to high priced digital locators that require a rocket scientist to operate. New features include unified mechanical packaging, crystal controlled electronics, an internal inductive antenna, and one-handed operation. The A700 system includes the receiver, transmitter, output cables, ground rod and plate, and foam lined carrying case. Inductive Couplers are available as accessories to the A700 system as are the Sewer Snooper and Mini Snooper for locating  non-metallic pipes or ducts.

Features

Accessories:
l SN100 Sewer Snooper
l SN200 Mini Snooper
l IC49 Inductive Coupler
l IC56 Inductive Coupler
l IC56WT Wireless Inductive Coupler

Specifications


Receiver:



Operating Frequency:

117.85 KHz

Antenna mode:

Switch able between Null or Peak display mode

Audio Indication:

400hz loudspeaker output

Visual Indication:

Large analog meter

Depth Measurement:

Bubble level triangulation

Operating Temp:

-32 °C to 52°C

Battery Type:

6 AA batteries 1.5V

Battery Life:

150 hours

Weight:

2,10 kg

Qualified:

CE, RoHS and WEEE

*Equipped with external antenna jack for cable phasing identification.

Transmitter:



Operating Frequency:

117.85 KHz

Impedance Matching:

5 direct output setting for matching and mismatching capabilities

Output modes:

Direct output jack and internal Inductive Antenna

Operating Temp.

-32 °C to 52°C

Battery Type:

6 D batteries 1.5V

Battery life:

50 Hours

Weight:

Approx. 2,73 kg

Qualified:

CE, RoHS and WEEE
