Light weight, integrated one-hand
controls, speed and simplicity sum up the new A700 analogue
pipe and cable locator. A700 is an affordable analogue
alternative to high priced digital locators that require a
rocket scientist to operate. New features include unified
mechanical packaging, crystal controlled electronics, an

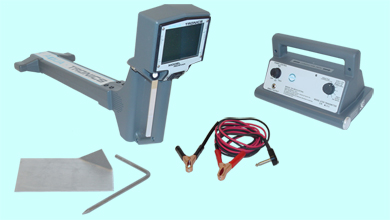

internal inductive antenna, and one-handed operation. The A700
system includes the receiver, transmitter, output cables, ground
rod and plate, and foam lined carrying case. Inductive Couplers
are available as accessories to the A700 system as are the
Sewer Snooper and Mini Snooper for locating non-metallic
pipes or ducts. |
|
Receiver: |
|
|
Operating Frequency: |
117.85 KHz |
|
Antenna mode: |
Switch able
between Null or Peak display mode |
|
Audio Indication: |
400hz loudspeaker output
|
|
Visual Indication:
|
Large analog meter |
|
Depth Measurement: |
Bubble level triangulation |
|
Operating Temp: |
-32 °C to 52°C |
|
Battery Type: |
6 AA batteries
1.5V |
|
Battery Life: |
150 hours |
|
Weight: |
2,10 kg |
|
Qualified: |
CE,
RoHS, and WEEE |
|
*Equipped
with external antenna jack for cable phasing
identification. |
|
Transmitter: |
|
|
Operating Frequency: |
117.85 KHz |
|
Impedance Matching: |
5 direct
output setting for matching and mismatching
capabilities |
|
Output modes: |
Direct output
jack and internal Inductive Antenna |
|
Operating Temp. |
-32 °C to 52°C |
|
Battery Type: |
6 D batteries
1.5V |
|
Battery life:
|
50 Hours |
|
Weight: |
Approx. 2,73 kg |
|
Qualified: |
CE,
RoHS and WEEE |
|
